Forgotten Classics: The 1990-1993 Chevrolet 454 SS Muscle Truck

The early 1990s were an interesting time for those looking for raw horsepower in a fun package. Ford’s Mustang had a 5.0L V8 with 205 horsepower and 275 lb-ft of torque, not too shabby. Camaro buyers could get a 5.7L V8 that put out 245 horsepower and 345 lb-ft of torque. But these potent small block wonders didn’t satisfy those who wanted something from the old days: big block power. GM heard the call and answered with the 454 SS, a muscle truck for the modern era. Unfortunately it seems that this entry in Chevrolet’s SS lineup doesn’t get the recognition it deserves. Here’s why this unique truck has earned a spot in high-performance history.

A Classic Winning Recipe

The concept of a muscle truck was nothing new. Back in the early 1960s Dodge let creative buyers cram a 426 Max Wedge V8 under the hood of a D-100 pickup and terrorized the drag strip. Later Dodge would fuel the last gasps of the true muscle car era with the EPA rule bending Li’l Red Express. GM had their own special late 1970s recipe called the “Big 10” that allowed ordering a 454 V8 in a ½-ton truck chassis. While the “Big 10” was aimed at those who needed to tow or haul heavy loads, some found it a sneaky way to acquire the big block power they wanted for the streets.

What Made The 454 SS Special?

Chevrolet had to make the 454 SS stand out from the crowd, so a mix of parts bin magic and bespoke parts were put together.

Exterior Appearance

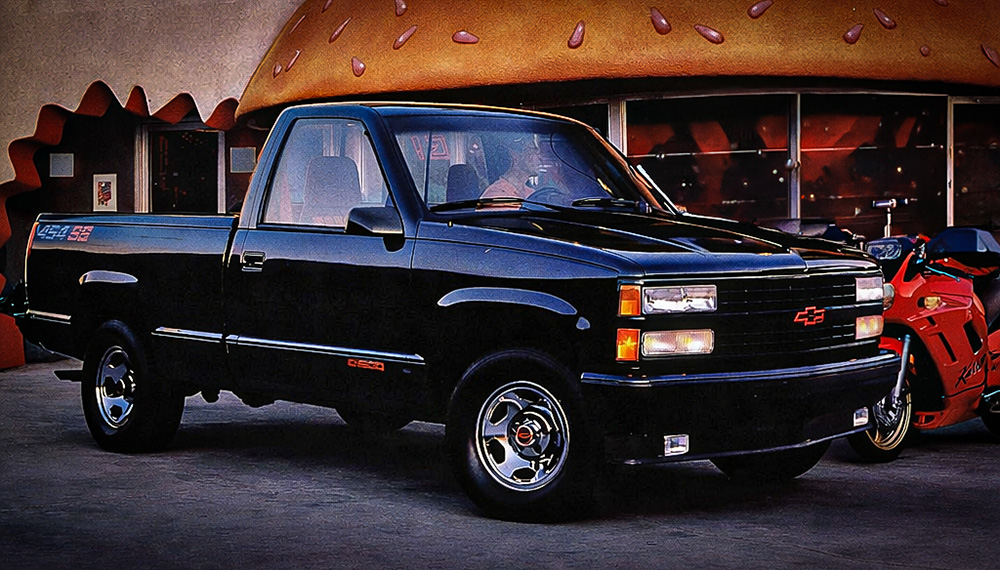

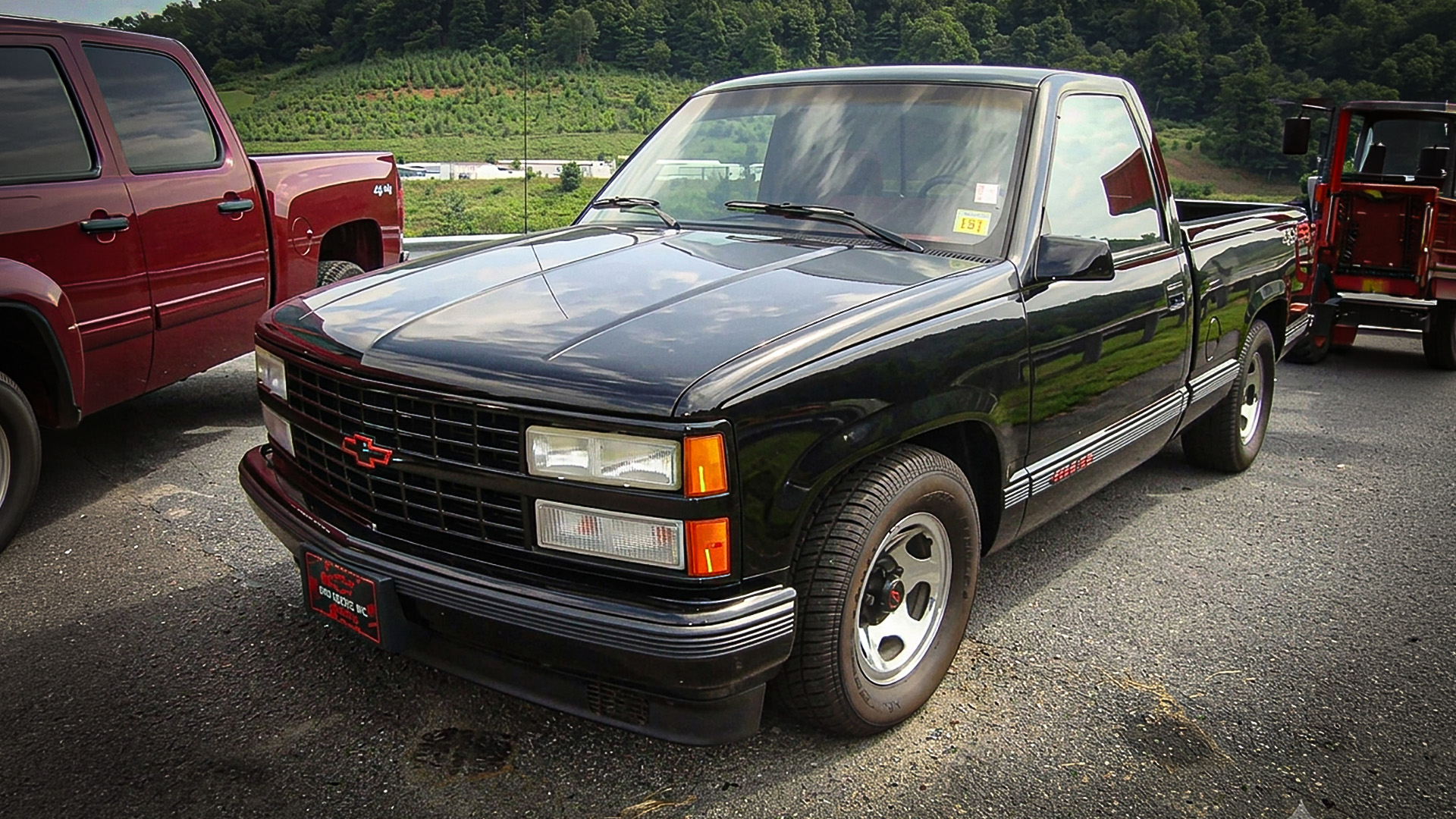

First off, the 454 SS was only available as a two-wheel drive, single cab, fleet side, short bed (sorry, no stepsides here) pickup. Paint was monochromatic with color matched bumpers for a cleaner, more modern look. For 1990-1991 you could only get the 454 SS in Onyx Black, but for 1992-1993 Summit White and Victory Red paint colors were added. Meaty 275-60R15 tires were mounted on eight inch wide polished steel wheels.

Up front a black air dam with fog lamps matched the blacked-out grille and black body-side moldings. Sporty, color matched side mirrors replaced the usual clunky standard units. Of course there were unique “454 SS” decals on the rear bed sides to let everyone know you were driving something special.

Interior

The most obvious interior differences were the exclusive high-back bucket seats covered in cloth fabric. For 1990-1991 models the only interior color was Garnet Red, but 1992-1993 models could choose Beige, Blue or Gray. A special steering wheel and center console gave it a sports car-like feel. Power accessories were also standard to give the truck an upscale experience. A modern (for its day) electronically tuned radio nicely offset the analog gauges. Overall the 454 SS interior was a nice place to spend time and a complete 180-degree swing from a standard work truck.

Powertrain

As the name suggested, under the hood was the L19 454 cubic inch big-block V8. It was also the only engine option, which makes sense given the model’s name and purpose. The initial Mark IV big-block 1990 models were rated at 230 horsepower and 385 lb-ft of torque. Engine tuning and dual exhaust bumped power output for Mark V big-block (1991-1993) models to 255 horsepower and 405 lb-ft of torque. Fuel delivery was via two-barrel TBI which worked just fine for the task.

Power transmission for the first-year models was handled by the well-known TH400 three-speed automatic transmission. For 1991-1993, though, the new 4L80E four-speed automatic transmission took over, bringing overdrive to the party. Both transmissions were heavy-duty units designed to handle big-block power. One of the ways that GM spiced up the 454 SS was a classic hot rod trick: steeper rear gears. GM’s 9.5” 14-bolt rear axle was standard in the 454 SS and the gearing made it jump off the line. For 1990 the rear axle ratio was 3.73:1, which was decent. But once the overdrive transmission came along, an even steeper 4.10:1 ratio was used for a better launch. The overdrive transmission made the steep rear gears no problem on the highway.

Steering & Suspension

To keep the aggressive feel, a quick-ratio 12.7:1 steering box was used. This allowed drivers to take advantage of the performance handling package which included Bilstein® gas-charged shocks, a thicker front sway bar, and a slightly lowered stance. While these changes didn’t turn the GMT400 chassis into a Corvette, it significantly tightened up the handling of what was still a gussied up work truck.

454 SS Production Numbers

The 454 SS was a limited production model, but it initially sold well. Unfortunately, outside economic factors hurt sales after the first year. The sales breakdown was as follows:

• 1990 – 13,748 units
• 1991 – 983 units
• 1992 – 1,379 units
• 1993 – 843 units

While the 1990 model was the most common, the later years are the most desirable due to the bump in power and improved acceleration

Truly A Modern Classic

The 454 SS combines the time capsule looks of the GMT400 platform with an entertaining drive that harkens back to the muscle car heyday. Big-block power under the hood with a mountain of torque made for a proper burnout machine. Pristine examples are bringing premium prices above $50k, but collectors can still find examples in the $20k to $40k range. For those daring to be different in their “muscle car” shopping, a 454 SS fits the bill nicely.
